Introduction

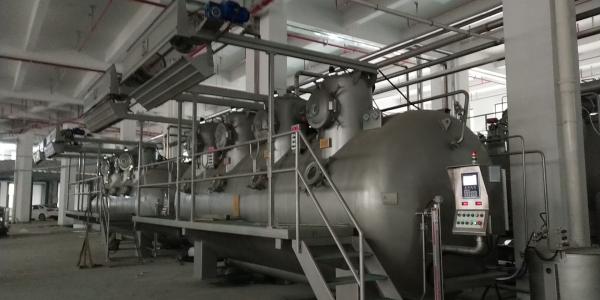

AS-Towel series is a groundbreaking U-flow dyeing machine designed to transform textile processing with its ultra-low liquor ratio of 1:5-1:6. By integrating an innovative dye circulation system and intelligent fabric handling technology, it achieves exceptional dyeing uniformity while significantly reducing resource consumption. This advanced system cuts additive usage by over 60% and reduces dyestuff requirements by 5%-10% through precise chemical dosing controls. Environmental performance is equally remarkable, with a 60% reduction in wastewater discharge and substantial decreases in water, energy, and steam consumption compared to conventional dyeing systems.

Technical Parameters

-Maximum fabric speed: 350m/min

-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃

-Heating rate: 25℃-100℃ about 5℃/min

100℃-130℃ about 2.5℃/min

(dry saturated steam pressure at 0.7Mpa)

-Cooling rate: 130-100℃ about 3℃/min

100℃-85℃average2℃/min

(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:6

Model and Specifications

Aleetex(China) Technology Co., Ltd. united Wuxi Quanrun Machinery Co., Ltd and Zhongyu(Wuxi) Precision Machinery Co., Ltd. as a group company.

We ALEES are specializes in making all types of dyeing machines with good performance more than 20 years.

Package yarn/Loose fiber/Zipper/Muff/Tape/Shoe Lace /Beam Dyeing Machine

Multi-flow Fabric Dyeing Machine

Soft Flow Fabric Dyeing Machine

Overflow Fabric Dyeing Machine

Knit Fabric Jet Dyeing Machine

Woven Fabric Jet Dyeing Machine

Jig Dyeing Machine

Hank Yarn Dyeing Machine

Looking forward to working closely with you to create a new world in the textile industry!
