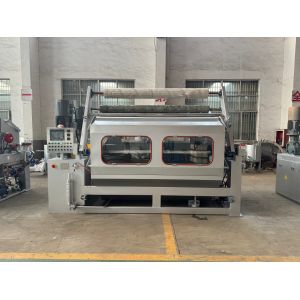

380V 50HZ Hthp Yarn Dyeing Machine Jig Dyeing Machine For Textile

Ask Lasest Price
Brand Name :	Alees
Model Number :	AS-JRJ-AT
Certification :	CE
Price :	USD5000-250000
Delivery Time :	6-9 weeks
Supply Ability :	50 sets per month

Add to Cart

Product Details
Company Profile

380V 50HZ Hthp Yarn Dyeing Machine Jig Dyeing Machine For Textile

Introduction

Suitable fabric: Viscose,nylon,elastic fabric,silk,cotton,polyester,blended fabric.

Technical Parameters

-Rolling diameter: Φ1000mm/Φ1200mm
-Roller width: 2000~4000mm
-Efficient width: 1800~3800mm
-Speed: 0~130m/min
-Tension range: 0~60KG

-Motor power: 2 sets 7.5kw
-Temperature control range: 0-100℃
-Rolling roller diameter: Φ325mm

Model and Specifications

Model	AS-JRJ-AT-800			AS-JRJ-AT-1200			AS-JRJ-AT-1400
Roller width(mm)	2000	3200	3400	2000	3200	3400	2000	3200	3400
A(mm)	800	800	800	1200	1200	1200	1400	1400	1400
B(mm)	2210	3410	3610	2210	3410	3610	2210	3410	3610
C(mm)	1600	1600	1600	2300	2300	2300	2700	2700	2700
D(mm)	3400	3400	3400	4200	4200	4200	4500	4500	4500
E(mm)	3300	4500	4700	3370	4570	4770	3470	4670	4870
F(mm)	4450	5650	5850	4270	5470	5670	4370	5570	5770
G(mm)	1800	1800	1800	2400	2400	2400	2500	2500	2500
H(mm)	2400	2400	2400	2700	2700	2700	2900	2900	2900

Product Tags:

380V Hthp Yarn Dyeing Machine

380V Jig Dyeing Machine

Hthp Yarn Dyeing Machine For Textile

380V 50HZ Hthp Yarn Dyeing Machine Jig Dyeing Machine For Textile
